External Doors

Westminster

RAL 1019

RAL 5008

RAL 7013

RAL 7030

RAL 9002

All doors are made to measure.

Please note our lead time is 10-12 weeks.

Enquire

Certifications

No items found.

Exclusively for A&D and trade

Access free samples, bespoke sample matching, preferential pricing and product CAD files.

Discover swd pro

Complimentary

Styles

Product Details

The Westminster is a classic six panel design that works well with both solid and glazed panels. The design also fits well with a knocker, knob or letterbox, or all three! Doorset includes:

Steel door leaf - triple metal construction, 75mm - 91mm width
Steel door frame – bent L-shaped profile fixed in the door aperture
Complete thermal insulation by rock wool or foam
Reinforced, adjustable hinges with supporting bearings
Internal and external architraves are included
Multi-point lock protected by two drill resistant Manganese plates
An excellent range of stainless steel or brass hardware.

Please click on the buttons below to view technical information and preview our materials and finishes.

view brochure

view spec sheet

High Security Ironmongery

Standard Ironmongery

This standard ironmongery list is included in the price of our doors.

ROUND KNOB

OCTAGON KNOB

HAMPSTED

ALGARVE

SUTTON

CHALLENGER

ALICIA

DELTA

RING KNOCKER

LETTER PLATE

Please get in touch for the different finishes available.

‍

Luxury Ironmongery

POLISHED BRASS LION HEAD KNOCKER

OCTAVIUS CDK CENTRE DOOR KNOB

HAB15 INLINE RECTANGULAR ‘T’ BAR PULL HANDLE

HAB2 INLINE ROUND ‘T’ BAR PULL HANDLE

OCTAVIUS CDK CENTRE DOOR KNOB

COURTOIS CDK CENTRE DOOR KNOB

PRINCESS DOOR KNOB

PRINCESS LETTER PLATE

CONSTABLE DOOR KNOB

CONSTABLE LETTER PLATE

These are just a small selection of luxury options available, please get in touch for more information and to hear more about the finishes.

‍

Glass Types

Your new door can be created as a single or double set and with glazed panels within the door, side panels or a fan light. The glazing can include lettering or numbering, and come in either clear, opaque or one-way mirror glass. The glass is a triple glazed security glass, 44mm thick.

Clear Glass with Frosted House Name

Opaque Glass with Clear Edge
& House name

Opaque with Frosted Border

Clear Glass

Opaque Glass

‍

Construction

The cross sections show how each beading profile looks on a flat panel or a raised panel. These beading types can also be used on glazed doors in any of our other collections too. Our sales team will be happy to assist you in knowing which beading and panel types are best suited to specific door models. Bespoke beading profiles are available upon request.

Panel Design
Door frame 2mm Mild steel
Door shelf 1.5mm Mild steel
Door leaf
Panel Design

‍

STRUCTURAL OPENING

M20 adjustable bolts
7,5mm concrete screws
Rockwool insulation
Expanding foam
Heavy duty hinge

‍

Security Levels

LOCK & AUTOMATED UPGRADES

Our doors come with a multipoint locking system as standard, which can be upgraded to a motorised lock giving you the convenience of electronically opening your door with the use of either a fob reader, electronic keypad, fingerprint scanner or with a mobile app. The motorised lock can also be linked to your home control system.

LEVEL 3

As standard we supply a Level 3 security door which has 10 bolts between the door and frame, so it is very secure!

Total door thickness 75.5mm
Resistant to most burglary tools including crow bars
100% thermal insulation by 50mm rock wool
Sound insulation of the door is 42dB

LEVEL 4

Upgrade to Level 4 security and your door will have 16 contact points between the door and frame, with the option to add bullet proof systems.

Total door thickness 91mm
Resistant to most burglary tools including crow bars and powered drilling tools
100% double thermal insulation: a 30mm layer of rock wool on both sides of the steel sheet (60mm total)
Sound insulation of the door is 45dB

For our security conscious clientele, we offer further reassurance by upgrading to a bulletproof door, which can match existing decor or period finishes and features. We use engineered materials such as steel, glass and wood in various fabrications and in a variety of shapes and sizes to incorporate the design aesthetic into our client’s security solution whilst still ensuring an aesthetic look.

PANIC ROOM

Considering adding a panic room to your property? A high security door is the perfect solution and can be used internally as well. Your door can be designed to suit specific requirements and can also be fitted with panels to match your interior doors so that the door does not stand out or look different. This level of protection and security provides complete peace of mind if you or your home is targeted by thieves, kidnappers or terrorists.

‍

Made to Measure

When purchasing new door sets, we can offer you a site survey which enables us to measure all of your openings and assess the exact requirements for a completely bespoke luxury service. Investing in a survey gives you absolute confidence that your doors are made to your exact specifications and eliminates scope for error and delay when installing. We also lend our experience and expertise to advise on solutions and options to meet any design requirements that you may desire.

If a site survey is not suitable, we can carry out a virtual site survey via video call or we can let you know the information we need and your builder can supply this instead.

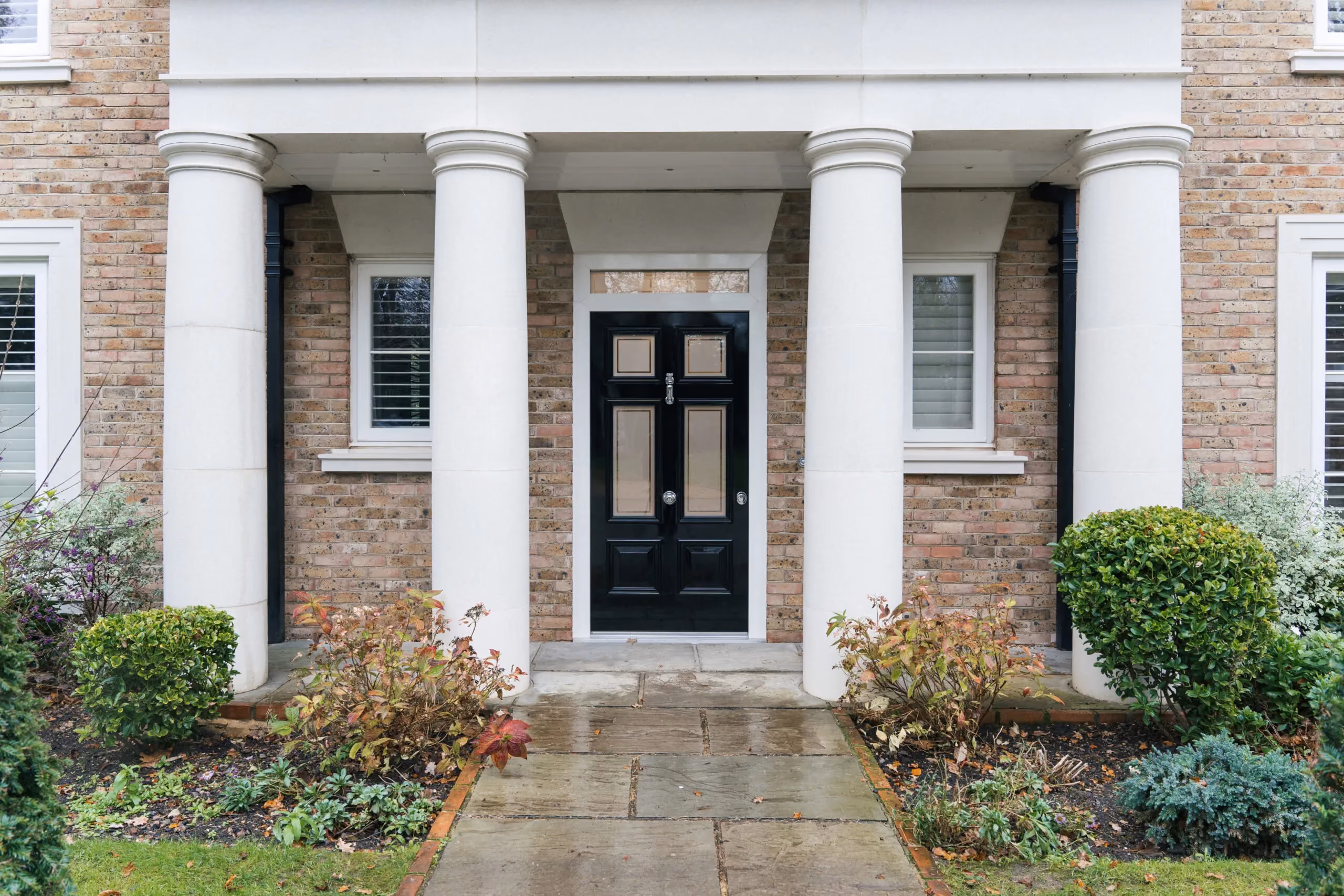

As seen in
